Description
Price: £165.99
(as of Jul 21, 2023 02:48:11 UTC – Details)
Customer FAQs & Recommendations：
—1) Recommendation: To protect the battery life, when using the generator for the first time, please fully discharge the battery and then fully charge it.
—2) Question: How do know if the device is suitable?
Answer: 166wh power station AC port only supports less than 150W, and the maximum output of the DC port only supports less than 100W. If the connected device has an adapter, please refer to the “INPUT” power of the adapter; if there is no adapter, please check the power “INPUT” of the device.
** Power (W) = voltage (V) * current (A).
—3) Question: Is it possible to output AC, DC, USB while charging the power station?
Answer: Yes. It is worth mentioning that:
a. If the output power is greater than the charging power, it may be displayed on the screen that the power station cannot be fully charged for a long time. This is normal, please charge the power station separately.
b. If you supply power to a high-power product while charging the product, the temperature of the portable generator may be higher, but this is normal and will not damage the product.
—4) Question: How to choose solar panels?
Answer: We recommend choosing a solar panel of 60W-100W, the charging speed is faster in the range of 18-22V, 2A (max). It is recommended to use with SWAREY 100W SOLARE PANEL.
—5) Question: How to calculate the usage time?
Answer: Use time = 166Wh * 85% /W. For example, if you use a 48W refrigerator, it can run for 2.9 hours.

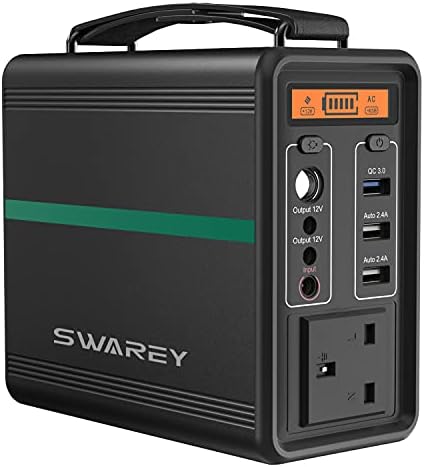

Portable Power Source

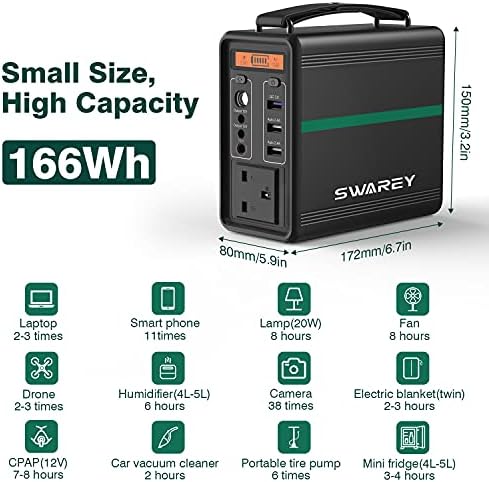

Easy to carry and store with its compact size(6.7*5.9*3.15in/172*150 *80mm). No matter where you are, let SWAREY come with you and keep you going.
Work Anytime
Charges for your smartphone about 11 times, tablet about 7 times, laptop 2-3 times. And the gas-free generator operates silently.
Use time = 166Wh * 85% /W. For example, if you use a 48W refrigerator, it can run for 2.9 hours.
Have a Party Anywhere

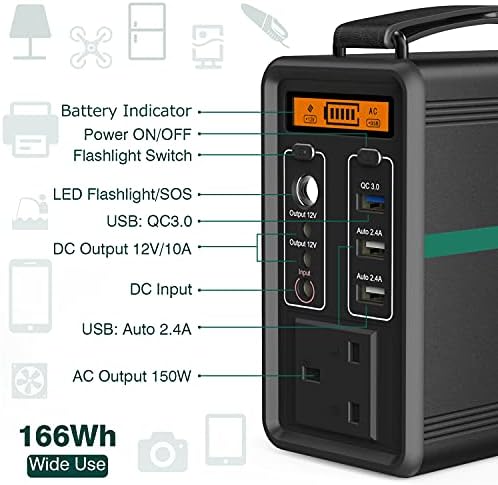

Equipped with four different output ports, providing flexible and convenient charging options.
PACKAGE INCLUDES
1 B-1502 Portable Power Generator1 AC Adapter1 Car Charger1 Solar Converter1 DC Female Cigarette Lighter Socket1 User Manual1 Thanks Card
Specifications:
Battery parameters: 160Wh (3.2V/52Ah, 12.8V/12.96Ah); 4S2P (4 series 2 parallel)
Output:
1 AC Outlet: 230V (150W)2 DC Outlet: 12V/10A (100W Max)2 AUTO USB Ports: 5V/2.4A (12W Max, Each)1 QC 3.0 USB Port: 5V-12V (18W Max）
Input:
AC Adapter: 14.8V/3A, Car Charger: 12V-22VSolar Panel: 13V-22V/2A Max

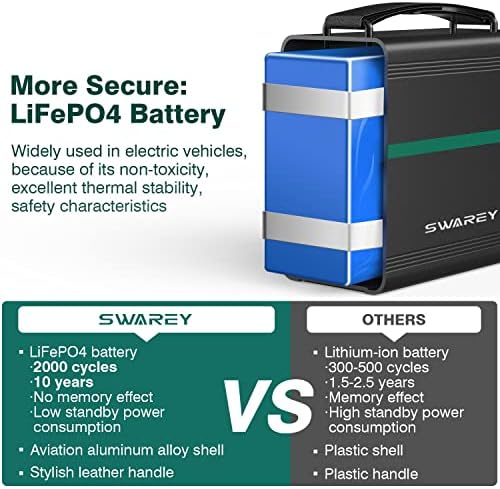

LiFePO4 Battery: The advanced lithium iron phosphate battery is widely used in the electric bus due to its safety. 3500 charge/discharge cycles and the battery life is up to 10 years. Multi-Protection: When under-voltage, over-voltage, over-load, over-temperature and short-circuit occurs, the unit will shut down automatically to ensure safety. Clean Power: No gasoline required. Clean and no acid or heavy metals inside.
Charged from Your Car
Owing to the under voltage protection, the unit can’t be charged or fully charged if the voltage of your car is too low.

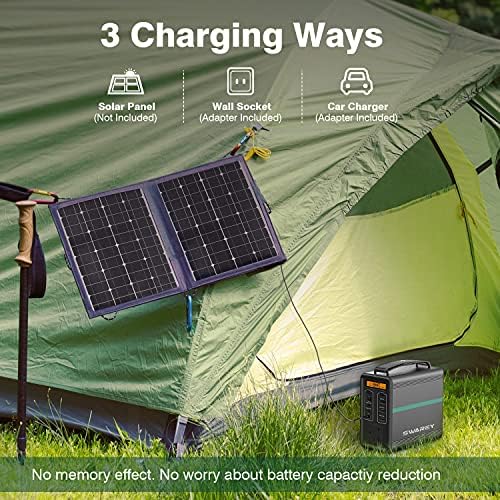

Charged from Solar Panel
With its built-in MPPT technology, this product could be charged by the solar panel (not included) efficiently.
LED Light & SOS
The light modes include flashlight and SOS. It’s perfect for camping and emergency use.
Prepare for Emergency
Ideal for preparing one in the house or office for power outages due to the disaster such as typhoon and earthquakes. The solid metal shell allows it to always work properly.
Capacity
166Wh (3.2V/52Ah, 12.8V/12.96Ah) 240Wh (3.2V/75Ah, 12.8V/18.75Ah) 518Wh (3.6V/144Ah, 21.6V/24Ah) 725Wh （3.6V/201.6Ah, 21.6V/33.6Ah) 30W 100W
Battery Type
LiFePO4 LiFePO4 Li-ion NCA Li-ion NCA ETFE Monocrystalline ETFE Monocrystalline
AC（220V-230V/50Hz）
150W 200W 500W 1000W / /
Surge Peak Power
≤200W ≤400W ≤1000W ≤1500W / /
AC Output
1 Port (Correction Wave) 1 Port (Pure Sine Wave) 1 Port (Pure Sine Wave) 2 Ports (reine Sinuswelle) / /
DC Output (5.5*2.1mm)
DC Output * 2, 12V/10A DC Output * 2, 12V/10A DC Output * 2, 12V/10A DC output * 2; Cigarette lighter * 1 / DC Output *1, 18V
USB Output
USB Port*2; QC3.0*1 USB Port*1; QC3.0*1; Type-C Port*1（PD 65W） USB-Port*2;QC 3.0*1;Typ-C-Port*1(PD65W) USB-Port*2;QC 3.0*2;Typ-C-Port*2(PD65W) USB Port*1; QC3.0*1 USB Port*1; QC3.0*1; Type-C Port*1（PD 60W）
MC4 Compatible
✓
✓
✓
✓
/
✓
MPPT
✓
✓
✓
✓
✓
✓
Special Function
Lightweight; Lithium Iron Phosphate Battery; Long battery life is up to 10 years Type-C bidirectional output / input (PD 65W) Compact Size, More Powerful Maximum solar power 126 W Lightweight; foldable ETFE coating; portable; foldable
【DURABLE AND PRACTICAL DESIGN】: 166Wh(3.2V/52Ah, 12.8V/12.96Ah) portable compact station with flashlight and SOS. Perfect for camping or emergency backup. 4 sides aviation aluminum alloy shell and leather handle prevent the unit from damage
【AC/DC/USB OUTPUTS】: 1 AC output (150W), 2 DC output (100W max), 1 QC 3.0 quick charge USB port and 2 USB ports(2.4A auto). Powers your smartphone, tablet, laptop, camera, light, drones, fans, in-car appliances, CPAP machine and more at anytime
【3 CHARGING WAYS】: With its built-in MPPT technology, this unit could be charged by the solar panel (not included) efficiently. AC adapter and car charger are included. And it takes 4-5 hours to fully charge the unit by being plugged into the wall outlet

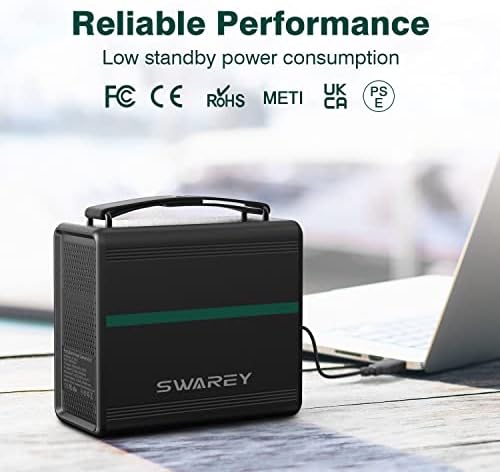

【FULL CERTIFICATION AND QUALITY ASSURANCE】: With the CE, FCC, PSE, ROHS certified. And the standby electricity consumption is super low and compliant to level VI energy efficiency standard. Enables under-voltage, over-voltage, over-load, over-current, over-temperature, short-circuit
