Description
Price: £66.99
(as of Jun 29, 2023 04:24:45 UTC – Details)
Regulated Output Voltage
0~30V 0~30V 0~30V 0~30V
Regulated Output Current
0~10A 0~10A 0~10A 0~10A

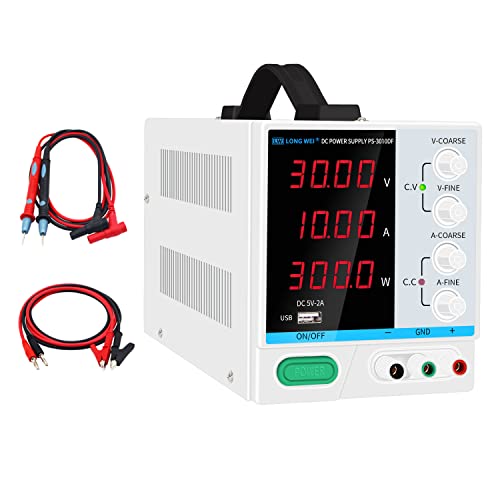

LONGWEI 3010DF Series is an DC regulated bench power supply.The maximum output voltage is up to 30V and the current is up to 10A. White frosted metal body and more compact size, looks more cool and dirt resistant.And at the same time,we still see quality reliability as the top priority for DC regulated power supply. The series is equiped with a better materials and upgraded structure which makes it higher reliable and accurate, lower ripple and noise.The new circuit design also makes it perform better in over-voltage, over-current, over power, over heat and protection.Its reliability and versatility make it an indispensable and valuable tool for testing, research projects, etc, and the ideal choice for laboratories, research institutes, and R&D organizations.

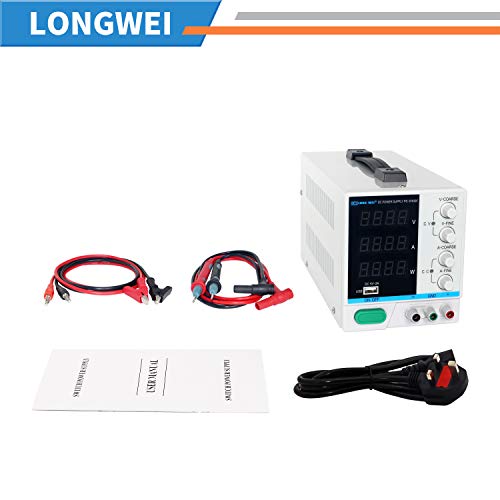

In the Box
1 x DC Power Supply1 x Output Power Cord1 x Input Power Cord1 x Test probes1 x User Manual
Lightweight, Compact and Portable
Weight: 4.2 lb (1.9kg)
Size: 11.2 x 5.0x 5.7 inch
LONGWEI 3010DF DC Power Supply can be easily taken to anywhere due to its light body.

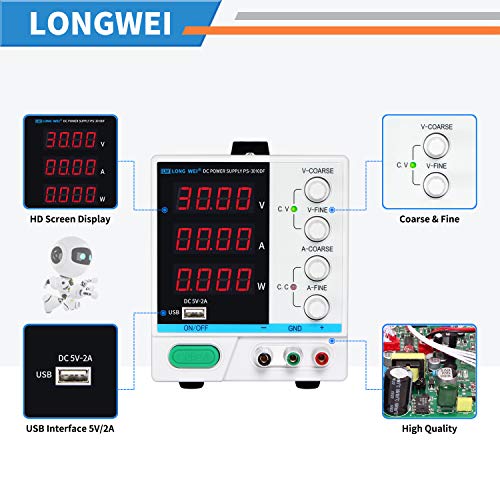

Come with a Large LED Display
The large 4 LED digital display provides more accurate voltage and current readings. Even in the low-light conditions, you also can easily and accurately read value. The hot selling point is that this power supply can calculate output voltage and current into power intelligently and displays the value on its large screen accurately.

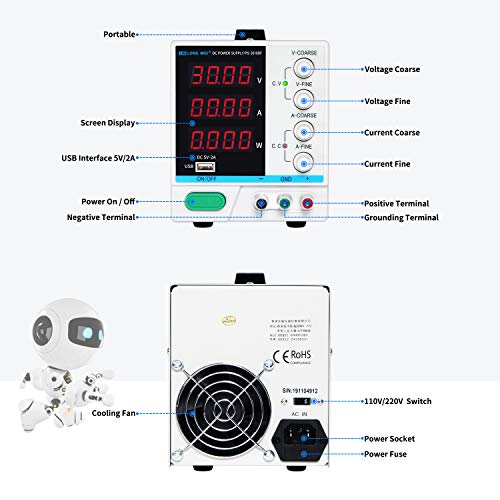

Easy to Operate
Coarse & Fine Adjustment
The product has independent coarse and fine adjustment buttons for both voltage and current, which is far more convenient and straightforward
5V / 2A USB lnterface
You can charge any USB device with it such as a smartphone which is waiting for repair, or which is used to take photo during your work
Cool Shell
White frosted metal body and more compact size, looks more cool and dirt resistant.
Intelligent Cooling Fan
Cooling fan will intelligently turn on when the working temperature is more than 122℉/50℃, giving the device longer service life

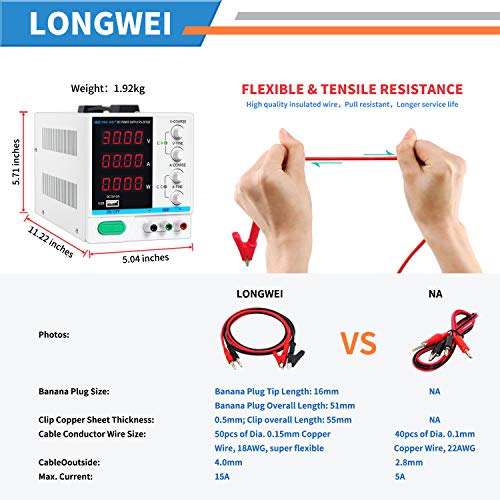

Excellent Accessories
Compared with other competitors, Safety is our priority.We provide a high quality set of jumper or tester lines. Please refer to the main figure for detailed parameters. These are good sturdy leads with nice rubber insulation cover and the alligator clips made of copper.The clips had insulators to reduce the possibility of accidental shorting. Good quality leads that work great for moderate to low current testing. These wire are good for up to 15 amps maximum. They are fine for basic electrical testing for things like automotive accessories, as long as whatever you are testing uses a fuse of 15 amps or smaller.
Model 3010DF Regulated Output Voltage 0~30V Regulated Output Current 0~10A Input Voltage Ⅰ 110V AC±10%60Hz Input Voltage Ⅱ 220V AC±10%50Hz USB Interface 5V/2A Display accuracy CV≤20mVr.m.s CC≤20mAr.m.s Line Regulation CV≤0.2%FS CC≤0.2%FS Load Regulation CV≤0.1%+5mV ,CC≤0.1%+10mV Still Have Question? Feel Free to Mail Us
✅【5V/2A USB Interface & The design with Elastic Handle】This voltage adjustable power supply could charge the device which you want to repair. It also features a large display that makes it easy and accurate to read voltages and currents. In addition, the design with Portable and lightweight could help you to carry it easily.
✅【Constant Voltage & Constant Current Operation Mode】The easy-to-use rotary knob of coarse and fine could adjust the data of voltage and current digit by digit, which allows you to set the desired output resolution quickly and easily in 30V 10A.

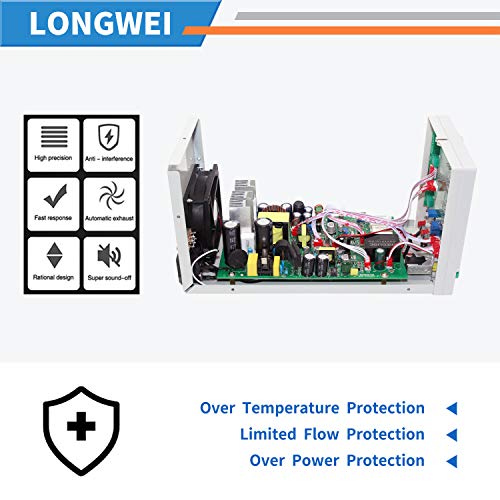

✅【Multiple Protections】This bench power supply 30v 10a provides overvoltage, overcurrent, overtemperature, overload, and short circuit to protect your device, prolong the service life of the dc power supply. In addition, it also has multiple heat radiation grooves on both sides, provides the cooling & exhaust fan protection
✅【Various Application】This one weighs less than 3kgs and measures only 11.2 x 5 x 5.7 inches, Applies for cb radio power supply, Lab Power Supply ，DIY, Electroplating Kit，Teaching Supplies，Work Bench ，Electronic Projects .(Buy Now Risk-Free with 30 days Free Of Return,we provide 12-Month after sale service, lifetime technical support. Please feel free to contact us if you have any concerns,we will reply to you to solve your problem in 24H.)
