Description
Price: £208.81
(as of May 08, 2023 01:03:58 UTC – Details)
Compatible with your USB 3.0, USB-C or Thunderbolt 3 notebook and tablet, any brand, any platform. Suitable for use with both Windows and macOS. Cables included – simply plug & play.
Extreme connectivity is not just confined to data as it can also achieve extreme visual fidelity. Users have the option to connect dual extended 4K/60Hz monitors or a single 5K/60Hz monitor, increasing productivity and making it easier to manage multiple applications. 4 video ports (2x HDMI + 2x DisplayPort) fits any possible scenario.
A single USB-C, USB 3.0 or Thunderbolt 3 port in your notebook expands to 13 ports! 4x USB 3.0 ports (2.0 compatible) and 2x USB-C ports makes it easy to connect all of your existing USB devices and peripherals. Separate audio in/out jacks on the front panel enable the easy connection to speakers, headphones or home theatre receiver. Gigabit Ethernet RJ-45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. Kensington lock slot provides additional security, especially for those working regularly in shared offices or public spaces. Optional free app i-tec Docker Pro (i-tec.cz/dockerpro) allows seamless MAC address cloning and automated backup function (Windows 7/10).
USB-C Dock provides up to 65W USB-C Power Delivery via your USB-C or Thunderbolt 3 port, so you can work and charge your notebook via a single USB cable. Windows, MacOS, Linux and ChromeOS users can put their laptop charger away and power their laptop via docking station. The 65W power delivery will charge laptops in no time.
Specifications

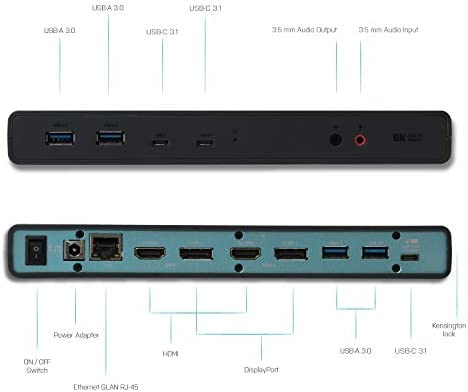

Connection 1x USB-C port for connecting to the host device with USB-C or USB-A port (cable USB-C and adapter from USB-C to USB 3.0 is included) Docking Station technology DisplayLink + USB-C PD (DisplayLink technology makes it simple to connect any display to any computer, via USB) Power Delivery 65W Video Ports 2x DisplayPort, 2x HDMI Supported Resolutions 2x 4K/60Hz or a 1x 5K/60Hz, detailed table below USB-C 3.1 2x USB 3.0 3x USB 3.0 port + 1x USB 3.0 port with fast charge support (BC 1.2) RJ-45 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950) 3,5mm Jack 1x 3,5mm Audio output + 1x 3,5mm Microphone input Power Input 1x DC 20V/5A On/Off Switch 1x LED Indicator 1x Kensington Lock Supported Cables USB-C cable with USB-C to USB-A adapter(100 cm) System Requirements Windows 7 / 8 / 8.1 / 10, macOS X, Linux Ubuntu 14.04, 16.04, 17.04, 17.10 18.04, 19.04, Android 5 or later, Chrome OS R51 or later
Supported Resolutions:
1 monitor – 1x DisplayPort → up to 4K/60Hz1 monitor – 1x HDMI → up to 4K/60Hz1 monitor – 2x DisplayPort → up to 5K/60Hz* Windows only2 monitors – 1x DisplayPort + 1x Display Port → up to 2x 4K/60Hz2 monitors – 1x DisplayPort + 1x HDMI → up to 2x 4K/60Hz2 monitors – 1x HDMI + 1x HDMI → up to 2x 4K/60Hz
Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 65W.*

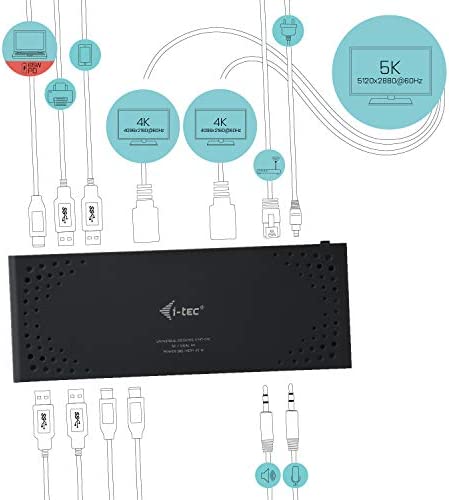

The unit is equipped with four graphics outputs, 2x HDMI, and 2x DisplayPort, although a maximum of two monitors can be supported simultaneously. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz)* is supported when a single monitor is connected via two DisplayPort cables.
4x USB-A 3.0 ports (USB 3.0 / 2.0 compatible) make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.
i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.
This docking station is suitable for use with MacBook Pro 2016, Macbook 2015, Chromebook Pixel 2015, Acer Switch Alpha 12, Acer Switch Alpha 13, Dell XPS 13, HP Elitebook Folio G1 and ASUS UX390UAK, as well as other devices with USB-C connectivity.
* Note: USB-C Power Delivery in selected HP laptops, specifically Elitebook and ZBook, uses proprietary technology. As a result, the resistance in the USB-C circuit is higher than normal. The docking station is fully capable of charging these laptops, although it may need to be reset, using the On/Off button, following initial connection.
Product Overview & Features
Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included)1x USB-C port for connecting to a host with USB-C or USB-A interface; an interconnecting cable with both ends is a part of the packageGraphic interface: 2x HDMI and 2x Display Port. The docking station supports the connection of max. 2 monitors. Resolution:1 monitor connected via 2 DP cables: 1x DP + 1x DP supports up to 5K 5120×2880@60Hz, host graphic card have to support 5K resolution2 monitors connected simultaneously: 1x DP + 1x DP supports up to 4K 4096 x 2160@60Hz; 1x DP + 1x HDMI supports up to 4K 4096 x 2160 @ 60Hz; 1x HDMI + 1x HDMI supports up to 4K 4096 x 2160 @ 60Hz4x USB-A 3.0 ports for connecting all existing hardware and accessories. USB-A ports are compatible with USB 3.1 and backward compatible with USB 3.0 / 2.0 devices and providing high-speed data transmission (5 Gbps), USB Hot Swapping support, from that 1x USB-A 3.0 with the support of quick charging-up for smartphones and tablets (BC 1.2)2x USB-C 3.1 port for the connection of your devices with a support of USB-C, supporting high-speed data transfer (5 Gbps), a support of USB Hot Swapping functionFeatures DisplayLink DL6950, VIA VL813 chipsetFast network and Internet access with Gigabit Ethernet RJ-45 port, supporting 10/100/1000 Mbps speedsKensington lock slot to discourage theftSeparate 3.5 mm audio input / output jacksPower-saving on / off switch allowing quick and easy reset of the docking station & power LED indicator1x power supply input – external power adapter (output: DC 20V/5A)Supports Windows 7/8/8.1/ 10 32/64 bit, Mac OS X, Linux Ubuntu 14.04 / 16.04, Android 6 and laterCross-brand and cross-platform compatibility
Package contents
USB-C Docking StationUSB-C cable with USB-C to USB-A adapter (100 cm)Power adapter (DC cable 110cm, power cable 170cm)Manual
Is discontinued by manufacturer : No
Product Dimensions : 22.3 x 8.8 x 2.7 cm; 340.19 Grams
Date First Available : 4 Sept. 2018
Manufacturer : i-tec
ASIN : B07H4GBV3R
Item model number : CADUA4KDOCKPDLUK
Guaranteed software updates until : unknown
1 monitor connected via 2 DP cables: 1x DP + 1x DP supports up to 5K 5120×2880@60Hz, host graphic card have to support 5K resolution
2 monitors connected simultaneously: 1x DP + 1x DP supports up to 4K 4096 x 2160@60Hz; 1x DP + 1x HDMI supports up to 4K 4096 x 2160 @ 60Hz; 1x HDMI + 1x HDMI supports up to 4K 4096 x 2160 @ 60Hz
4x USB-A 3.0 ports for connecting all existing hardware and accessories. USB-A ports are compatible with USB 3.1 and backward compatible with USB 3.0 / 2.0 devices and providing high-speed data transmission (5 Gbps), USB Hot Swapping support, from that 1x USB-A 3.0 with the support of quick charging-up for smartphones and tablets (BC 1.2)
2x USB-C 3.1 port for the connection of your devices with a support of USB-C, supporting high-speed data transfer (5 Gbps), a support of USB Hot Swapping function
